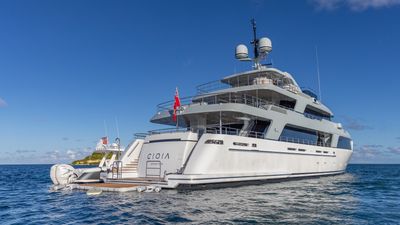

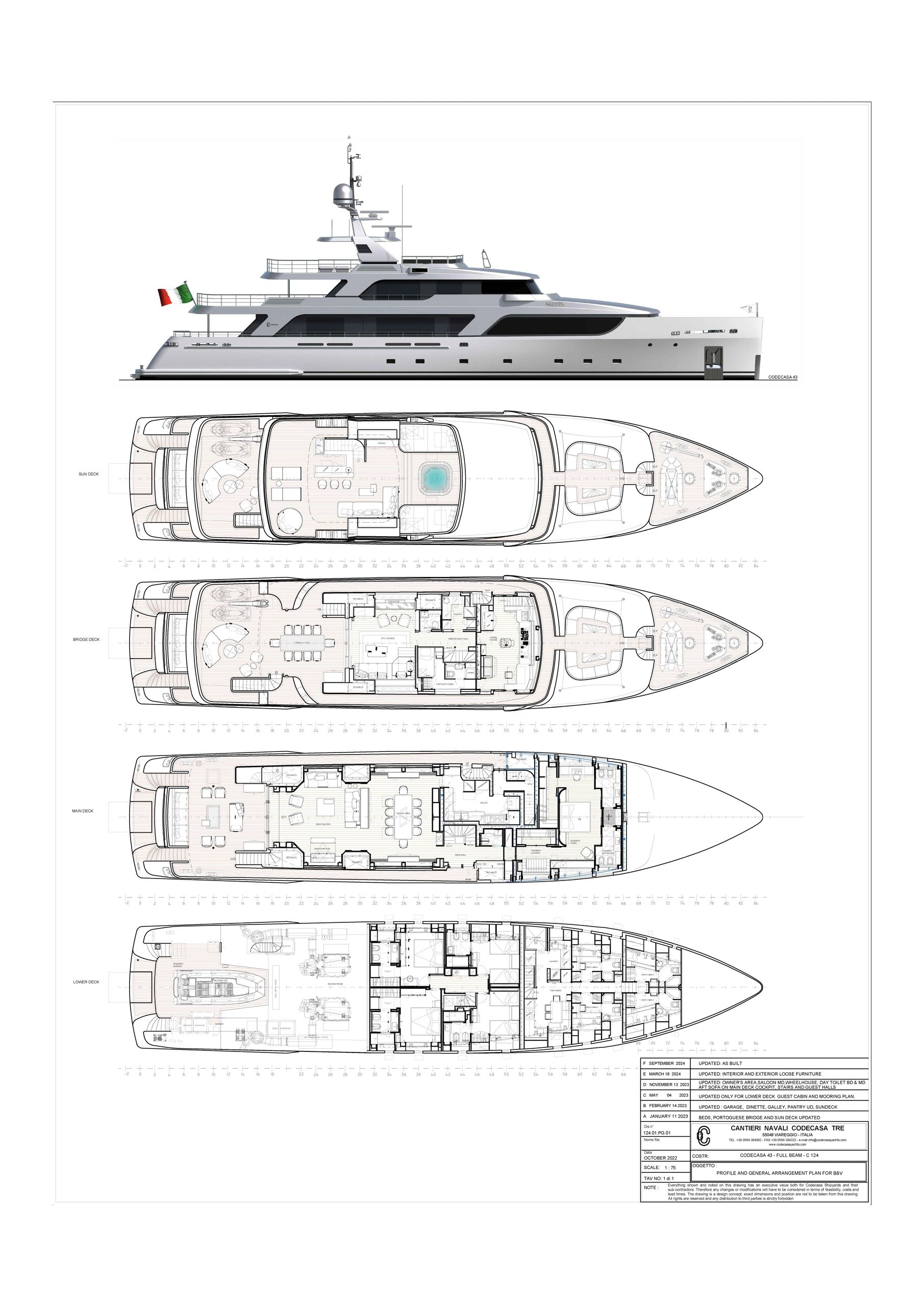

GIOIA Blueprints - from Custom Line

---

Quick Specs

• Cruising Speed:  12 kn
• Maximum Speed:  18 kn
• Beam:  24' 8''
• Hull Material:  Fiberglass
• Max Draft:  7' 2''
• Fuel Tank:  4940
• Fresh Water:  819 gal
• Cabins:  5

Features

• The 33M Navetta is one of Custom Line’s most successful models.

• Custom Line completed full exterior finishing from the water-line up including new exterior gel-coat, new exterior black accent paint and full re-painting of grey hardtop. Completed July 2020.

• Located in South Florida.

• Custom-built by an experienced American yachtsmen and overseen by a well known build surveyor.

• Upgraded 1622 hp CAT main engines, with only 1850 hours including 5 year CAT Advantage Warranties good until July 2023 and extendable for 5 additional years.

• On deck full 24’ 8” beam master stateroom, along with four additional lower deck staterooms.

• Full custom his and hers master head in "Bianco Gioia polished marble."

• Built as a “World Yacht,” with Dual ASEA frequency convertors and both European and USA outlets at every location.

• HD 11 KVH Sat TV system, with European and USA Sat decoders.

• Mini iPad controllers, for all entertainment, lighting, blinds, and air conditioning, on all three living decks.

• Zero speed fin stabilization along with (2) Seakeeper Gyro stabilization.

• Transformer stern garage with “Beach Club" and float-in storage for a Williams 505 Diesel Jet tender.

• Custom-designed sundeck with: Jacuzzi, custom bar, drop-down/180 degree rotating TV.

• Sunshades on sundeck and bridge-deck: upgraded in June 2020

Master Stateroom

• Full beam on deck master, with walk-in closet and dual sitting areas.

• Upgraded 55” TV in the master with iPad controlled: Sat TV entertainment systems, for both USA and Europe, Apple TV, Blu-ray player and surround stereo system.

• iPad controlling: power shear and black-out blinds, air-conditioning, and dimmable lighting.

• Custom Master his and her head in “Bianco Gioia polished Marble,” with 2’ x2’ rain showerhead.

• Custom-designed cabinetry, higher headboard and night tables in master.

• Hardwood floors in the master with carpet surrounding master bed.

• USA and European power outlets.

Guest Stateroom

• Four guest staterooms on the lower deck.

• All four staterooms have full attached heads.

• All four staterooms have TV, Sat TV, Apple TV and stereo system.

• Three of the staterooms have a single queen size bed.

• One stateroom has two twin beds.

• USA and European power outlets.

Salon

• Optional folding Balcony on the Starboard side, with large sliding door.

• Minotti Leonard sectional.

• Two Minotti Richard armchairs in Nabuk.

• Two Minotti Elliot coffee tables.

• Powered panographing Salon door, with access to aft deck cockpit.

• Dining for 8 at dining Table by Minotti model Lou Dining.

• Hidden power retracing, 55” TV with ipad controlled: Sat TV entertainment systems for both USA and Europe, Apple TV, Bluray player, and surround sound system.

• Ipad controlling: Power shear blinds, Air Conditioning, and dimmable lighting.

• Day Head in custom designed Silk Georgette marble.

• USA and European power outlets

Upper Salon

• Minotti Leonard sectional.

• Two Minotti Richard armchairs in Nabuk.

• Powered panographing salon door, with access to aft deck cockpit.

• Dining for 10 at dining table by Minotti (model: Lou Dining).

• Hidden, power-retracting, 55” TV with iPad controlled: Sat TV entertainment systems for both USA and Europe, Apple TV, Bluray player, and surround sound system.

• iPad controlling: power shear blinds, air-conditioning, and dimmable lighting.

• Day Head in custom designed Silk Georgette marble.

• USA and European power outlets

Upper Salon Aft Deck

• Gloster ten-person teak dining table with Denon Seax chairs.

• Two Gloster L-shaped exterior sofas with teak coffee tables.

• Custom-designed wet bar with fridge.

• Upgraded exterior sound system with “Party mode.”

Sundeck

• Custom L-shaped bar with sink, Icemaker, fridge, and two gaggenau grills.

• Teak Decks.

• Removable polished stainless steel pole with shower head.

• Jacuzzi tub, with walk around and sunpad cover.

• 48” TV retracting from sundeck ceiling with 180 degree rotation.

• iPad controlled Sat TV entertainment systems for both USA and Europe, Apple TV, and surround sound system.

• Three Roda Sun Loungers model Orson.

• Two Summit bar stools.

• Roda Sofa model Dandy.

Wheelhouse

• Upgraded “Super Premium,” glass bridge helm. Consisting of two 24” touchscreen monitoring systems, two 26” Monitors, one super wide 38” center monitor.

• Two Black box Furuno radars

• FLIR Thermal imaging camera, with pan and tilt.

• Furuno Class B AIS

• Furuno Navnet Black Box plotting system.

• Separate Captain stateroom off wheelhouse.

• Premium internet package, consisting of a dual sim 4G router and dockside wifi connector, linked to wireless access points covering all areas of the boat.

• KVH HD 11 worldwide sat TV system, with matching Dummy dome.

• 58 HP Hydraulic Stern Thruster. 70 HP Hydraulic Bow Thruster .

• External Wing control stations, off both port and starboard sides of wheelhouse.

Bow Area

• Bimini with Six Carbon Fiber poles

• Custom larger Teak Dinette table, with removable center section.

• Four Premium external speakers with party mode.

• Large bow storage hanger.

• Dual anchors with upgraded anchor chain.

Aft Deck

• Aft deck sun pad with sliding back rest.

• Premium external speakers, with party mode.

• Two Summit teak lounge chairs.

• Two Summit teak coffee tables.

• Two Summit teak and stainless folding chairs.

Beach Club/Tender Garage

• Diesel fueling station, connected to main fuel tank for filling tender.

• Electro Hydraulic ceiling crane, for launching jet ski.

• Beach area speakers connected in party mode.

• Removable polished stainless steel pole with shower head.

• Float in storage for a 505 Williams diesel jet tender.

• Removable teak deck, to transform tender garage to Large Beach Club.

• Two underwater lights at transom and Five underwater lights on each hull side. Total 11 lights.

• One up facing underwater light on Bulbous bow.

• Mooring whips on both sponsors, with additional cleats for mooring tender.

Mechanical

• Upgraded Caterpillar C32 1623 HP Main engines.

• Upgraded twin Kohler 53KW generators.

• Upgraded Tropical Air Conditioning, with dual raw water and chilled water pumps.

• Upgraded Idromar 500 liters per hour watermakers, two units.

• Dual A/SEA Frequency convertors.

• Built as a “World,” yacht with both USA and European outlets in all locations.

• Seakeeper Gyro Stabilized along with Zero Speed fin Stabilization.

• Two sets of Miele washer and dryers in the crew area.

Performance

• 28 gallons of fuel burned, per hour at 10 knots.

• 40 gallons of fuel burned, per hour at 11 knots.

• 60 gallons of fuel burned, per hour at 12 knots.

• 100 gallons of fuel burned, per hour at 13.5 knots = 60 % load.

• 148 gallons of fuel burned, per hour at 14.5 knots = 85% load.

Additional Equipment

• Headhunter sewage treatment plant installed October 2021

• 12 new underwater lights, October 2021

• Commercial ice maker


Repairs & Upgrades Completed 2022

Below reviewed by RINA in anticipation of special 5-year survey, but not limited to:

• Remove shafts, send to shop for RINA inspection and balance
• Remove propellers, send to shop to measure and recondition
• Replace shaft cutlass bearings
• Replace shaft packing glands
• Load-test shaft struts, remove and repairs FRP at exterior hull connection per RINA
• Pressure clean, sand bottom, RINA inspection, apply fresh antifoulant
• Replace all zinc anodes in June and October
• Overhaul bow thruster
• Overhaul main seawater through-hulls with RINA inspection
• Open and inspect water and fuel tanks
• Water tank sanded and repainted with 3 coats
• Inspect and service all firefighting and lifesaving equipment
• Certify all liferafts and hydrostatic releases
• Service and prove central bilge system
• Service and prove fire stations, hoses, and nozzles
• Service and prove navigation, anchor and not-under-command lights
• Service and prove all emergency lighting
• Service generators and main engines and transmissions in accordance with manufacturer's and RINA specs. Borescope inspections by RINA
• Oil samples on all engines to labs
• Install Seamless Transfer System on shorepower and both generators
• Full-Service converter/transformer A/SEA shorepower system
• Replace main UPS unit
• RINA Megger test all main distribution panels and both generators
• Overall aft deck capstans
• Overhaul anchor windlass
• Remove, clean, and mark port and starboard anchor rodes
• Conduct sea trials to test all systems
• Service climate control system, service fan coils, replace seawater pump, overall seawater strainers
• Overhaul both watermakers
• Overhaul engine room ventilation systems, ducts, fans, dampers
• Replace all (12) 2V batteries and (2) AGM
• Replaced batteries for Gen Sets
• Overhaul both Seakeepers, replace seawater cooling pumps and heat exchangers
• Remove and overhaul ABT stabilizer fins and system
• Overhaul transom platform and garage door hydraulic system, replace motor, wiring
• Remove and overhaul passarelle
• Service hydraulic balcony components
• Replace blackwater macerator pump
• Remove marble flooring and substrate in both master head compartments, fabricate, and install new
• Replace center monitor in Pilot house
• Checked all monitors and radars by Team Italia prior to Dock Express departure
• Installed new 5G GSM antennas
